Promotional Best Quality 4 Tons Model: ULYE High Efficiency No RivetClinching Machine with hydro pneumatic cylinder

Non Standard Model: Ulye 4 Tons C Frame Rivetless Clinching Press Machine for Metal Sheet Connection Without Rivets or Nuts


1)ULYE Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods

which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.

2) It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.

3) In the process of pressing , sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.

4) In industrial applications,Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of

11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been
achieved!

Product Main features

1) Compact structure, clean design

2) Increased productivity with automatic feeding system and multi-point riveting

3) Large anti-ejecting forces and anti-torsion torques

4) High flexibility with height-adjustable

5) High stroke frequency High stroke frequency

6) Easy maintenance and changeable

7) Available for riveting nuts diameter larger than M10

Product specifications

Equipment Name: Pneumatic -hydraulic pressurization cylinder riveting machine for sheet metal fixing

Equipment model: ULYE-4T


The total stroke: 100 mm

Power stroke :6 MM or 10 MM


The maximum oil pressure: 6 bar


The largest power: 80 (KN)

Include electrical control system

Power supply: 220V/60HZ
Rated minimum pressure: 3 bar (lower than the pressure device will act difficulty)


Rated maximum pressure: 6 or 8 bar (higher pressure equipment will be damaged)

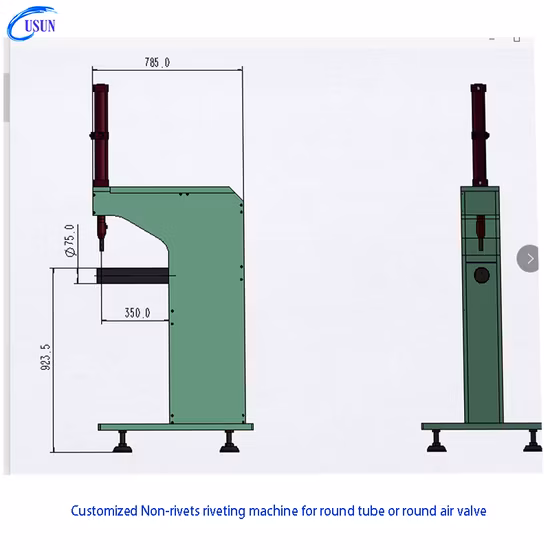

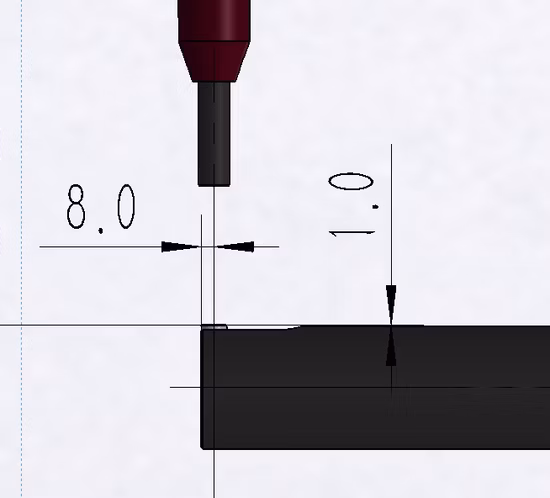

Product layout drawing

Type

ULYE-4 ( maximum 4 tons pressure)

Max. pressing force

40KN

Power source

USUN brand

Power supply

220V/ 50Hz

Max. total stroke

100 mm

Compressed air

5-8 Kg/cm2

Weight

700 Kg


Performance parameters

Point

diameter

(mm)

Sheet

thickness

(mm)

Shear

strength

(N)

Tensile

strength

(N)

Punching

force

(KN)

Φ3

0.5-1.5

260-520

130-360

7-15

Φ4

0.6-2.0

710-1300

350-850

13-28

Φ5

0.9-2.5

750-2000

200-1000

15-30

Φ6

1.0-3.0

560-3400

300-2200

12-40

Φ8

1.6-6.0

510-6200

290-2800

18-60

Φ10

1.75-7.0

1600-8500

800-6200

36-105

Φ12

4.0-11.0

2700-10000

1100-7500

61-125


Product applications
No-rivets clinching procession
